1V1;14V1 30° grinding wheels with hybrid bonds HBD01&SPD01

Precise 1V1/14V1 Grinding Wheels with 30° Angles for Superior Sharpening

Improve sharpening performance with our specialized 1V1 and 14V1 grinding wheels, designed with a 30° angle. These wheels are available with HBD01 and SPD01 bonds, providing exceptional durability and precision for the most demanding applications in industry and tool processing.

Key Features and Benefits:

• Optimal 30° Angle: The specialized 30° angle ensures precise sharpening and processing, ideal for specific tool geometries.
• High-Quality HBD01 and SPD01 Bonds: The use of HBD01 and SPD01 bonds guarantees the durability and stability of the grinding wheel during use.

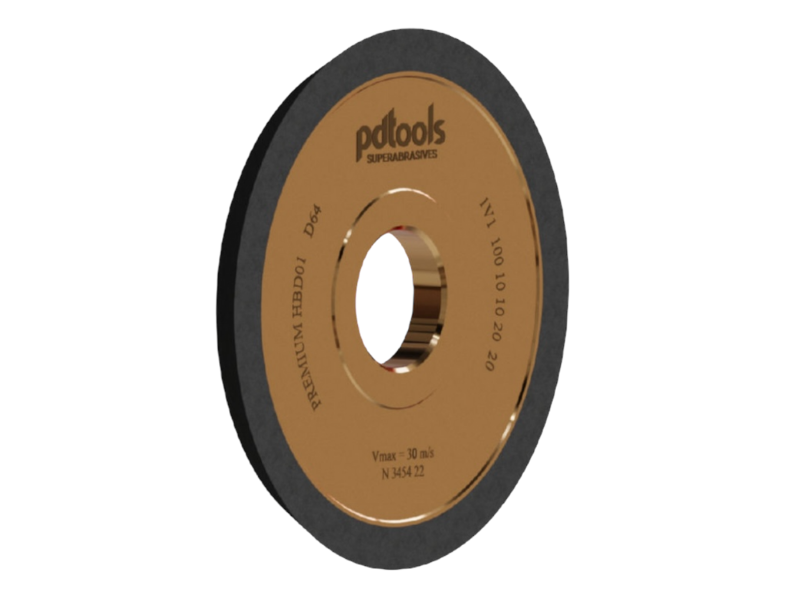

• Two Wheel Shapes: Available as 1V1 and 14V1 wheel shapes, offering flexibility and adaptability to various machines and needs.

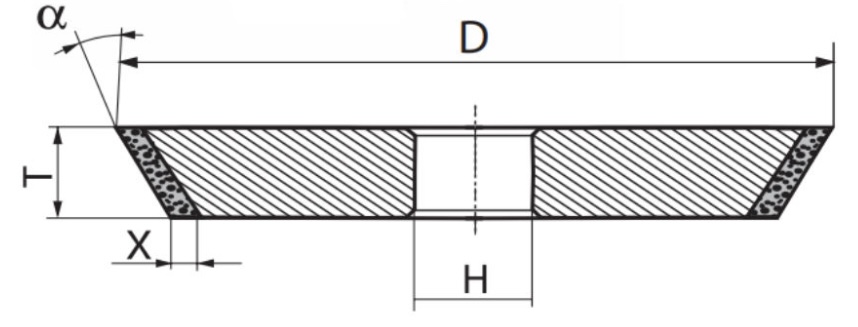

• Fully Customizable Dimensions: Custom ordering includes wheel diameter (D), wheel height (T), layer thickness (X), angle (α), and bore diameter (H) for the 1V1 shape. For the 14V1 shape, the layer width (U) can also be defined.
• Wide Range of Grits: Ordering examples include D64 grit for 1V1 and D46 for 14V1, as well as B64 and B46 for CBN grinding wheels, allowing for the selection of the ideal grit for the desired finish and efficiency.
• Also Available as CBN Grinding Wheels: In addition to standard, we also offer CBN 1V1 and CBN 14V1 grinding wheels, ideal for processing extremely hard materials.
• Ideal for Professional Use: These grinding wheels are essential for tool manufacturers, sharpening services, and all professionals involved in precise processing, offering superior quality and extended tool life.

Invest in our 1V1 and 14V1 grinding wheels with a 30° angle and improve the efficiency and quality of your sharpening. Order today and experience the difference!

Order this wheel shape in your size!
